Delta Table Saw Drive Belts

Home >

FREE Delta Factory Tools Parts Lists from MikesTools.com. Located in top right hand corner of web site.
Find the part number from the parts list and enter Part Number in the search box on the left side of my web site. Do not use the reference number off of the diagram. Scroll down and find the part number.
Email Address: mike@mikestools.com

Delta Table Saw Model No.	Delta Table Saw Name	Delta Belt Part No.
34-345	10" Motorized Saw SR No. IQ-130+	34-669
34-325	Model 10 Deluxe Motorized Saw	34-669
N/A	10" Unisaw	49-124
N/A	10" Contractor's Saw (old style) Prior SL No 88j00000	49-034
N/A	10" Contractor's Saw SN 88J00001 through 90C12579	49-034
N/A	10" Contractor's Saw SN 90C12580 through 95H98459	49-034
N/A	10" Contractor's Saw SN 95H98460+	49-034
N/A	Contractor's Saw Series 2000	49-034
36-455	10" Contractor's Saw Grand Edition	49-034
36-475	10" Contractor's Saw Platinum Edition	49-034

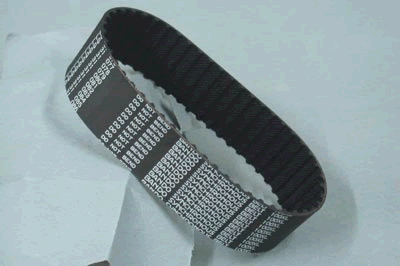

36-600, 34-670	10" Contractor's Saw Platinum Edition	34-674

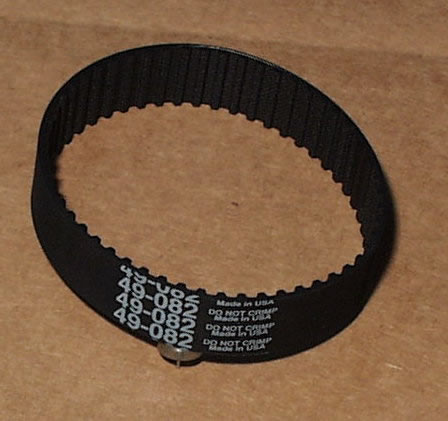

34-625	9" Motorized Saw (old style)	49-082
34-653, 34-654,34-657	9" Motorized Saw	49-082
34-600	9" Tilting Arbor Saw (old style)	49-152
34-607, 34-609, 34-643, 34-644	9" Builders Saw	49-034
34-619	Model 9 Contractor's Saw	49-152
34-425	10" tilting Arbor Bench Saw (old style)	N/A
34-400, 34-402, 34-426, 34-429, 34-430	10" Tilting Arbor Bench Saw	51-008
34-338	10" Tilting Arbor Contractor's Saw (old style)	51-007
34-341	10" deluxe Contractor's Saw (old style)	49-273
34-618	9" Contractor's Saw	49-152
34-348	10" Contractor's Saw	49-034
34-300	10" Motorized Saw prior SL No DW-7200	49-082 - Replace Pulley
34-335, 34-336	10" Motorized Saw SL No EK3600+	49-081
34-300	10" Motorized Saw SL No 7200+	49-081
34-335, 34-336, 34-345	10" Motorized Saw SL No FP-400+	49-081
