Porter Cable Dovetail Jig 55160 includes 55160 Jig Base, 16" Single-Pass Half-Blind / Sliding-Tapered Dovetail Template, Instructional DVD featuring Norm Abram, Left and Right Template Stops - C2, Dovetail Bit - D4, 4 Template Guides - G2, G3, G4 & G5, Lock Nut, Stabilizer Bar, Router Bit Depth Pod, Square Screwdriver, Wrench, 2 O-Rings.
Features

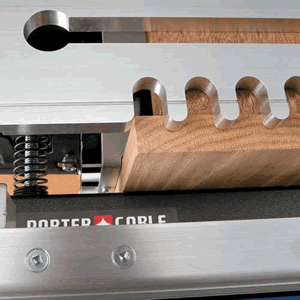

Fixed-space template enables half-blind dovetails to be cut with a single pass of the router
Template may also be used for rabbeted half-blind and sliding-tapered dovetails
Pre-assembled and factory set to minimize user set-up time
Durable base design allows for clamping or bolting directly onto work bench

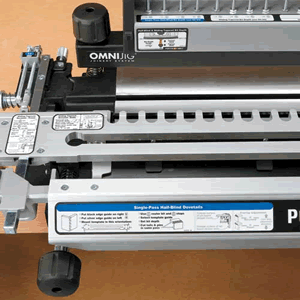

Clear and concise on-board instructions guide the user through the various applications while significantly reducing the need to refer to instruction manual

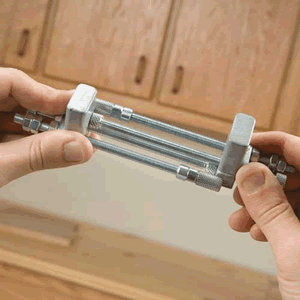

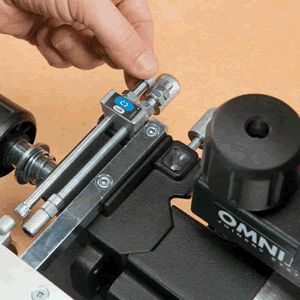

'Set & Forget' template alignment stops and router bit depth gauges combine to minimize test cuts and offer repeatibility across changing applications

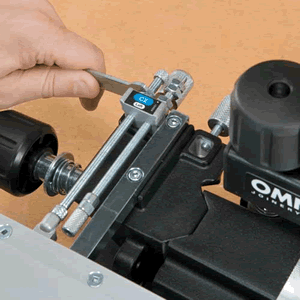

Router bit depth gauges allow the user to set bit depth without measuring
Stabilizer bar enhances router control while deflecting chips downward for a cleaner work environment
Single-hand clamping system allows for easy positioning of wood on jig
Machined, textured surfaces provide excellent grip on wood during operation when used in conjunction with steel clamping mechanism
Durable steel and alloy construction provides longivity
Instructional DVD featuring Norm Abram provides additional support for user
Versatile system also allows for variable-spaced half-blind and through dovetails, miniature dovetails and box joints with additional accessories (sold separately)
Component storage case and dust shroud also available as accessories (sold separately)
SPECIFICATIONS:
Capacity In Wood: 1/8 - 1-1/2" "
Length: 36.125 "
Height: 13.375 "
Depth: 19 "
Weight: 45.1 lbs
