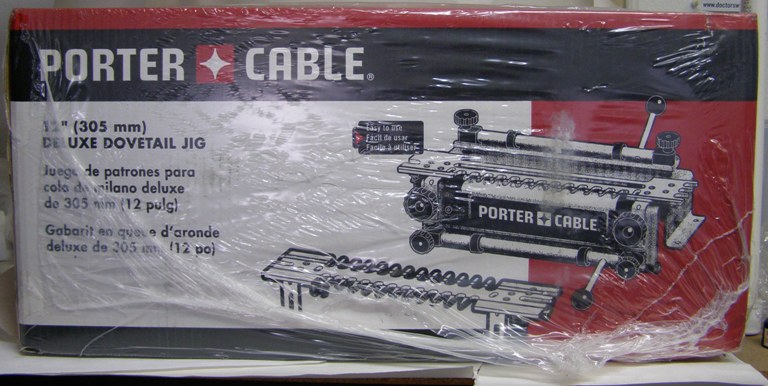

Porter Cable Dovetail Jig 4212 Porter Cable 12" Deluxe Dovetail Jig
Features:
- Handles stock 1/4" to 1 1/8" thick
- Patent pending alignment lines and router bit depth stop allow for quick, easy set-up
- Heavy-duty cam-type clamps with sandpaper-backed locking bars provide solid grip of wood
- CNC machined aluminum templets provide superior accuracy
- Cuts through dovetails
- Box joints
- Half-blind dovetails
- Rabbeted half-blind dovetails
- Dovetail dadoes
- Additional templet available to create miniature dovetails
Standard Equipment:
- Dovetail Jig 4212
- Through dovetail/box joint combo templet #4213
- Half-blind/dado combo templet #4211
- 1/2" shank carbide-tipped dovetail bit #43776PC
- 1/2" shank carbide-tipped straight bit #43743PC
- Templet guide #42040
- Templet guide #42046
- Two lock nuts #42237
- Operating manual
Specifications:
- Base:1/8" Stamped Steel
Clamps:
- Cam-Action 3/4" Steel
- Max. Stock Width: 12"
- Max. Stock Thickness: 1-1/8"
- :Standard Templet
- :Half-Blind/Dado Combo Templet
- Through Dovetail/Box Joint Combo Templet
Shipping Dimensions:
- Length: 22.87"
- Width: 12.37"
- Height: 11.37"
- Shipping Weight:25 lbs.
