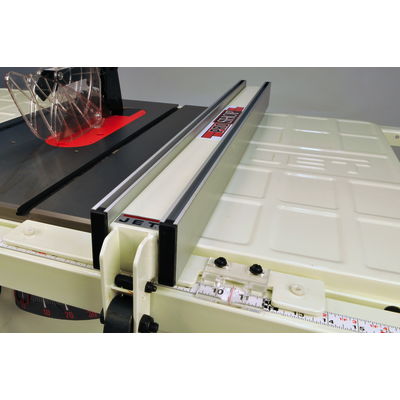

The JET ProShop Table Saw offers features you expect from a high-end cabinet saw, in the compact design of a contactor-style machine. The transparent blade guard has independent leaves, and the quick release riving knife reduces chance of kickback. A low profile riving knife is included for non-through cuts. The exclusive ProShop fence system is available in 30” or 52” rip capacity.

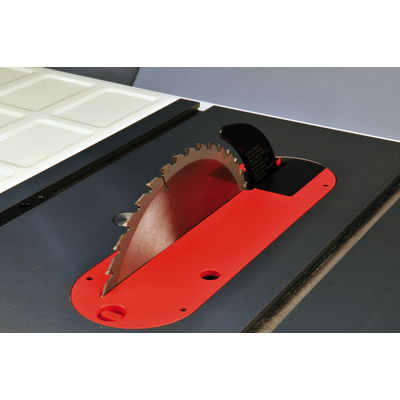

- Riving knife maintains close blade proximity to reduce chance of kickback
- Integrated arbor lock is accessed from table top for rapid blade change

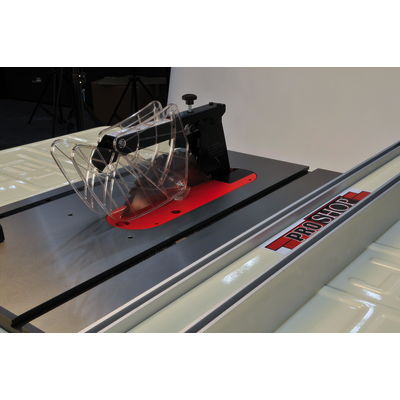

- Blade guard and riving knife have quick release for tool-less mounting and removal
- Enclosed cabinet with exclusive leg stand design for easy assembly
- Heavy duty cast iron table with T-style miter gauge slot
- Sloped cabinet floor and 4” extraction port enhance dust collection efficiency

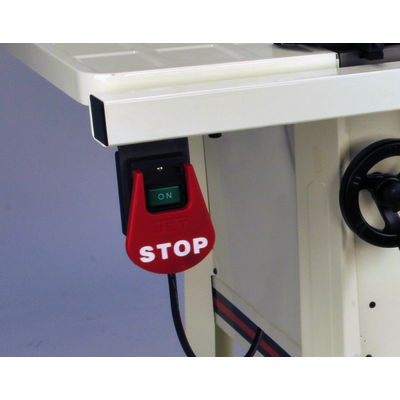

- Easy-to-reach control switch
- Rigid, left-tilting cast iron trunnion
- Powder coated paint for a long-lasting, chip-resistant finish
- 10” blade included
Specifications:
- Style (Type) Contractor
- Blade Diameter (In.) 10
- Arbor Diameter (In.) 5/8
- Arbor Speed (RPM) 4000
- Maximum Depth of Cut (In.) 3-1/8
- Maximum Depth of Cut at 45 Degrees (In.) 2-1/8
- Maximum Rip Left of Blade (In.) 12
- Maximum Rip Right of Blade (In.) 52
- Table in Front of Saw Blade at Maximum Depth of Cut (In.) 10
- Maximum Diameter of Dado (In.) 8
- Maximum Width of Dado (In.) 13/16
- Table Type Cast Iron
- Table Size with Extension (L x W) (In.) 27 x 44
- Miter Gauge Type T-Slot with Stops
- Dust Collection Minimum CFM Required (CFM) 350
- Dust Port Outside Diameter (In.) 4
- Motor Power (HP) 1-3/4
- Motor Phase (PH) 1
- Motor Voltage (V.) 115/230
- Prewired Voltage (V.) 115
- Motor Amps 15/7
- Weight 374
CA Prop 65 WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance know to the State of California to cause cancer. Avoid inhaling wood dust or use dust mask or other safeguards for personal protection.
