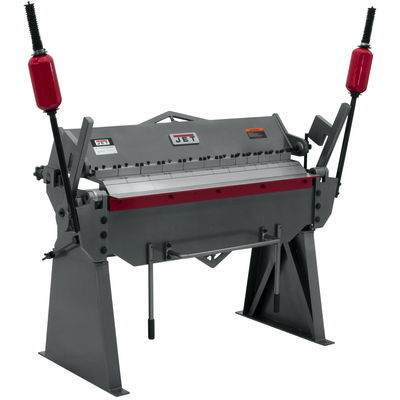

Box and Pan Brakes from JET are perfect for the larger, high volume shop that requires versatility yet demands rugged durability and bending precision

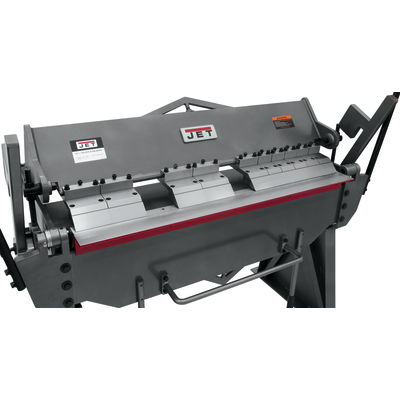

- Wide assortment of finger widths allow greater versatility in the shop
- With fingers installed it can be used as a full-length nose bar, turning the machine into a straight bending brake
- All body sections are welded steel plate with heavy truss rods and braces designed to give greater strength and durability
- Both the bed and apron are bored in line to assure the utmost accuracy

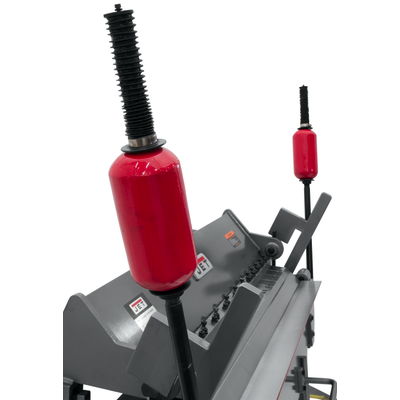

- Counter weights can be moved up or down to adjust desired leverage

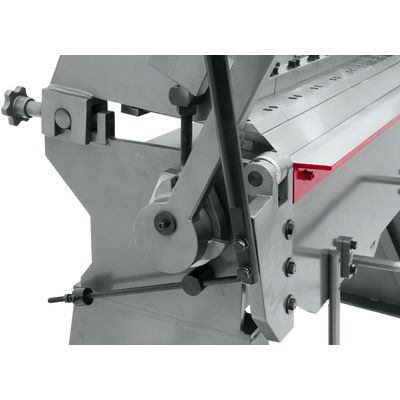

- Stop rod for repeatable bending
- 12 gauge maximum capacity for mild-steel
- 10 gauge maximum capacity for aluminum and copper alloys
- 16 gauge maximum capacity for stainless steel
Specifications:
- tyle (Type) Floor Box and Pan
- Mild Steel Capacity (Gauge) 12
- Bending Length Capacity (In.) 48
- Maximum Box Depth (In.) 4
- Maximum Lift of Beam (In.) 1-1/2

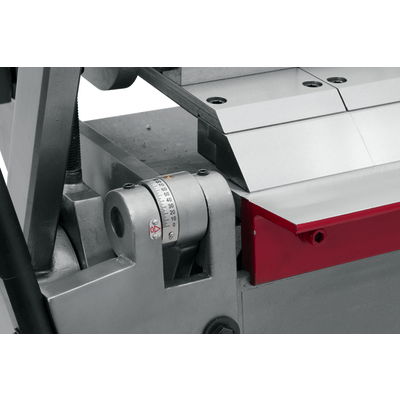

- Beam Adjustment (Front to Rear) (In.) 7/8
- Number and Width of Fingers (In.) 12 (5@3in, 2@4in, 5@5in)
- Finger Nose Angle (Deg.) 45
- Nose Radius (In.) 1/32
- Overall Dimensions (L x W x H) (In.) 87 x 59 x 70
- Weight (Lbs.) 1,110
