Sherline 685801 18″ CNC-Ready XYZ Base w/ Ball Screws

Sherline 685801 18″ CNC-Ready XYZ Base w/ Ball Screws 685801
Sherline 685801 18″ CNC-Ready XYZ Base w/ Ball Screws 685801

Additional Images

Sherline 685801 18″ CNC-Ready XYZ Base w/ Ball Screws 685801 Sherline 685801 18″ CNC-Ready XYZ Base w/ Ball Screws 685801
SKU 685801
Item In Stock
×
  • Item is backordered.
$3,072.00
Description
Features & Specs
Sherline 685801 18″ CNC-Ready XYZ Base w/ Ball Screws
2-3 week lead time

Please note that our ball screws only come in a metric pitch

  • *Preferred unit of measurement for laser engraved portions Inch Metric
  • *Will you be using Sherline’s CNC driver box? Yes No

    Put answers in remarks section during checkout


For optimal performance, we recommend using the High-Torque Stepper Motors with our Ball Screws.
Purpose of the Sherline Mill XYZ Bases

    The Sherline ball screw mills can be purchased without the headstock and motor/speed control. This allows owners of other Sherline machines to swap the headstock and motor/speed control from one machine to the ball screw mill in approximately 60 seconds. This package offers a savings compared to the price of our full ball screw mills.

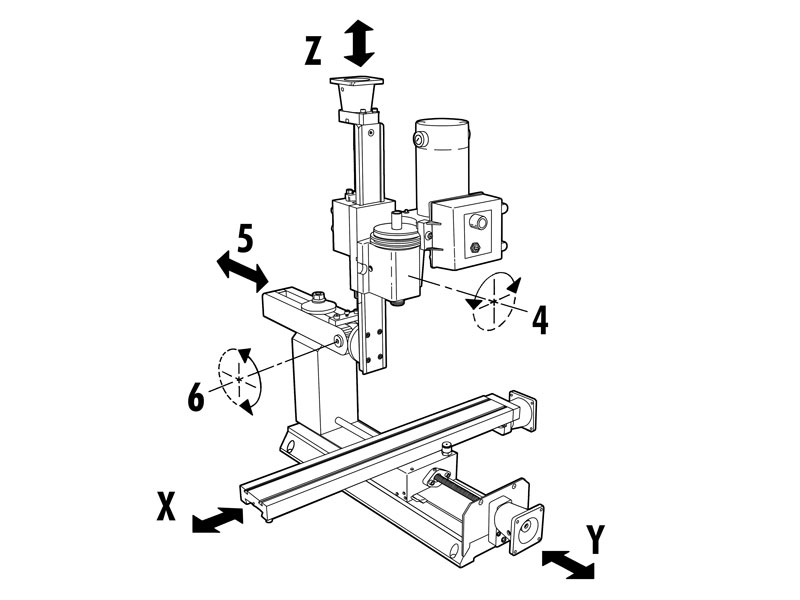

    The Axes of Movement of a Sherline 6858 Ball Screw Mill
    The table left/right movement is referred to as the X-axis. The table in/out movement is the Y-axis. Headstock up/down movement is referred to as the Z axis. The headstock can also be rotated on its saddle on Sherline mills (#4), the column ram can be moved in and out (#5), and the Z-axis column can be tilted forward and back (#6)..

    Standard equipment for the 685801 XYZ base:

  • 18″ Mill Base
  • Electroless nickel/Teflon coated mill saddle
  • 15″ Extended Column Bed with nickel/Teflon plating
  • Extra-Rigid Column Base
  • 18″ Extended Mill Table
  • Stepper-motor mounts with high-torque couplings
  • The handwheels are included and can be mounted to the end of the stepper motors to maintain manual control when needed.* 2-1/2″ (63mm) adjustable “zero” handwheel on the Z-axis and 2″ (51mm) adjustable “zero” handwheels on the X- and Y-axes. Each handwheel has laser engraved aluminum handwheel collars
  • *NOTE: CNC-ready machines cannot be operated manually until stepper motors are installed.
  • Oil reservoirs on the X/Y axes and the Z-axis to help keep critical parts lubricated.
  • Brass leadscrew cover that keeps chips off the rear of the Y-axis leadscrew
  • Accordion way cover Travel: X=13.65″ (347 mm), Y= 11.0″ (279 mm), Z=9.25″ (235 mm)
