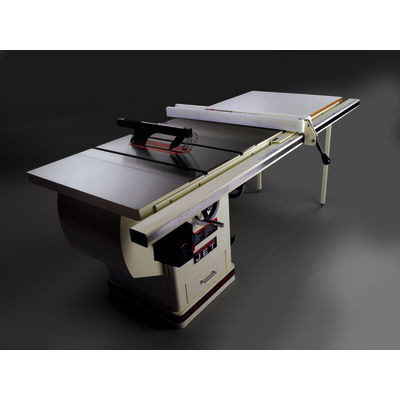

If you've ever wondered about what a table saw can really do, look no further. Introducing the new JET® 10" DELUXE XACTA® SAW. The Quick release riving knife and integrated arbor lock keeps the operator safe and more efficient. The DELUXE XACTA® SAW offers an upgraded Poly-V belt drive system for smooth operation and optimal power transfer, a fully shrouded blade for highly efficient dust collection. The 26" x 30" wings and deeper table gives you even more cast iron to work on. A built-in 12.5" x 18" x 4 " storage drawer sealed from the cabinet keeps your necessities within arms reach, also includes an on-board fence and miter gauge storage.
- EXCLUSIVE 50" Commercial XACTA® Fence II with T-square design

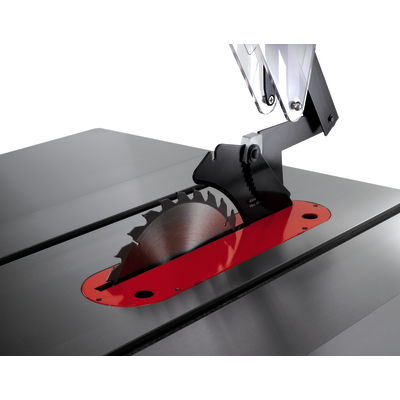

- Quick release riving knife greatly reduces binding/kickback risk
- Push button arbor lock for rapid blade change
- Shrouded Blade increases dust collection efficiency
- Standard 11" left and right cast iron extension wings provides the largest table surface in its class
- Poly-V drive belt system delivers quiet, efficient operation
- Rail-mounted magnetic switch is easy to reach and provides overload protection
- Enclosed cabinet with built-in sealed storage drawer
- Hinged motor cover on cabinet gives quick access to the motor and belts
- Deluxe miter gauge with adjustable positive stops and large soft grip handles provides large crosscutting capacity and accurate miters
- Heavy-duty chrome plated handwheels contribute to smooth trunnion/arbor movement
- Built-in 4" dust collection port
- Precision ground high luster cast iron table tops with front edge bevel for hassle-free workpiece positioning

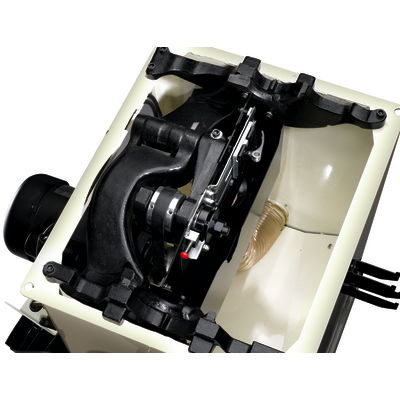

- Left tilt, Wide stance heavy-duty trunnion for stability and smooth blade positioning
- Independent leaf safety guard protects operator from blade while cutting, even at 45° tilt
- Arbor wrench
- Powder coated paint for a long-lasting, chip-resistant finish
Specifications:
- Style (Type) Cabinet
- Blade Diameter (In.) 10
- Arbor Diameter (In.) 5/8
- Arbor Speed (RPM) 4300
- Maximum Depth of Cut (In.) 3
- Maximum Depth of Cut at 45 Degrees (In.) 2-1/8
- Maximum Rip Left of Blade (In.) 13
- Maximum Rip Right of Blade (In.) 50
- Table in Front of Saw Blade at Maximum Depth of Cut (In.) 10
- Maximum Diameter of Dado (In.) 8
- Maximum Width of Dado (In.) 13/16
- Table Type Cast Iron
- Table Size (L x W) (In.) 29 x 20
- Table Size with Extension (L x W) (In.) 29 x 42
- Miter Gauge Type Deluxe
- Dust Collection Minimum CFM Required (CFM) 350
- Dust Port Outside Diameter (In.) 4
- Motor Power (HP) 3
- Motor Phase (PH) 1
- Motor Voltage (V.) 230
- Prewired Voltage (V.) 230
- Motor Amps 14.5
- Weight 510Lbs.
