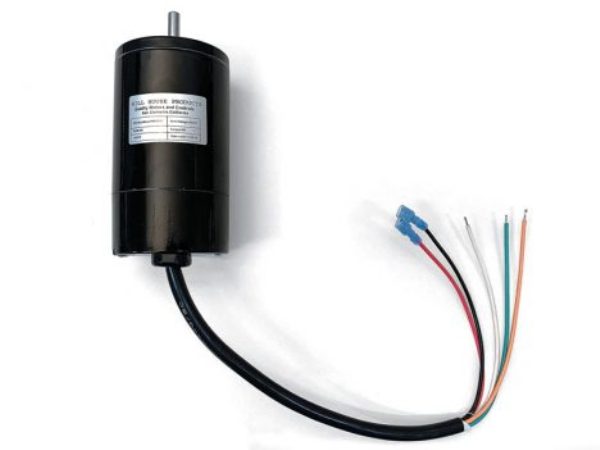

Sherline Tool Part 45475 Motor (Hill House)

Sherline Tool Part 45450 Sherline Motor 45450
Sherline Tool Part 45475 Motor (Hill House)
45475

Additional Images

Sherline Tool Part 45450 Sherline Motor 45450 Sherline Tool Part 45475 Motor (Hill House)
45475
SKU 45475
Item In Stock
×
  • Item is backordered.
$174.64
Description
Features & Specs
Sherline Tool Part 45475 Motor (Hill House)<>BR>
Note: Internal brushes for this motor are none replaceable and not available for purchase separately.
    Specifications: Electric Motor Specifications from Manufacturer
  • Type of enclosure: Totally enclosed, non-vented
  • Duty rating: Continuous–10 oz. in. at 6100 rpm, .85 amperes;
  • Intermittent–30 oz. in. at 5500 rpm, 1.75 amperes (5 minutes on / 15 minutes off)
  • Output horsepower: .06 KW (60 W) at 10 oz. in. / 6100 rpm
  • AC voltage (input): Normally 115 VAC, 60 Hz, Single Phase to a rectifier (Sherline electronic speed control converts any input from 100 VAC to 240 VAC, 50-60 Hz.)
  • DC voltage: 90V DC to motor (60 Hz)
  • Speed in rpm: 6100 rpm continuous
  • Class of insulation: Class A, 105° (C.) insulation system
  • Normal full load current: .85 amperes
  • Starting current: 1.7 amperes instantaneous starting current (<100 milliamperes). This is also the stall current in True RMS
  • Max current at time of changeover from lower speed to higher speed: Depends on load
  • Type of motor: 3.00 inch (outer diameter) sub-fractional horsepower brush-type permanent magnet motor
  • Temperature rise at ambient 50° C.: Less than or equal to 45° C.
  • Motor frame size: 3 inches
  • End use of motor: Drive unit for lathe or mill
  • Shaft size: 5/16″
