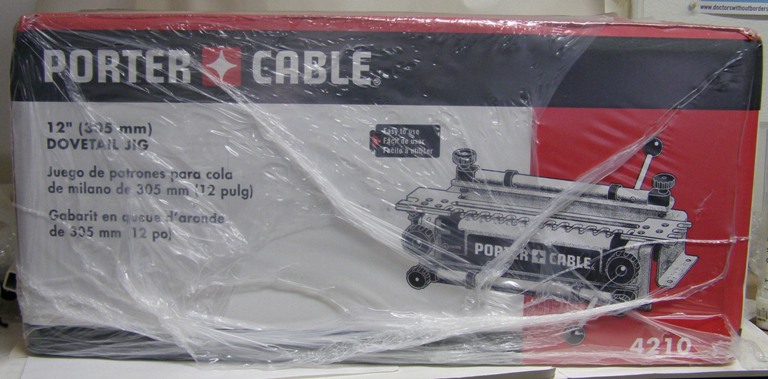

Porter Cable Dovetail Jig 4210
- Handles stock 1/4" to 1 1/8" thick
- Patent pending alignment lines and router bit depth stop allow for quick, easy set-up
- Heavy-duty cam-type clamps with sandpaper-backed locking bars provide solid grip of wood
- CNC machined aluminum templets provide superior accuracy
- Cuts half-blind dovetails, rabbeted half-blind dovetails, and dovetail dadoes
- Additional templets available to create through dovetails, box joints, and miniature dovetails
Standard Equipment:
- Dovetail jig
- Half-blind/dado combo templet #4211
- 1/2" shank carbide-tipped dovetail bit #43776PC
- Templet guide #42040
- Lock nut #42237
- Operating manual
Specifications :
- Base 1/8" Stamped Steel
- Clamps,Cam-Action 3/4" Steel
- Max. Stock Width
12"
- Max. Stock Thickness 1-1/8"
Standard Templet
- Half-Blind/Dado Combo Templet
Shipping Dimensions:
- Length: 22.87"
- Width: 12.37"
- Height: 11.37"
- Shipping Weight 24 lbs.
